Product Details:
|
| High Light: | 684K/300V High Voltage Capacitor Safety,X1 Safety Capacitor for Industrial,Self-healing property X1 Safety Capacitor |
||
|---|---|---|---|

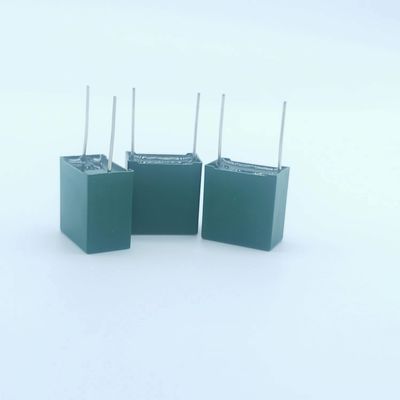

684K/300V Anticorrosive X1Safety Capacitor for Industrial Applications
| 产品名称:X1类300VAC | Product name: Class X1 300VAC |
| 产品描述特征: | Product description feature |
| 提供干扰抑制,所有安全认证 | Provides interference suppression, all security certifications |
| 耐受过电压应力 | Withstand overvoltage stress |
| 自愈特性 | Self-healing property |
| 主动和被动阻燃剂 | Active and passive flame retardants |
| 应用 APPLICATIONS | |
| 适用于线路旁路,天线耦合,跨线和火花熄灭电路. | Suitable for line bypass, antenna coupling, cross-line and spark extinguishing circuits. |
| 适用于EMI滤波器. | Suitable for EMI filters. |
| 开关电源应用 | Switching power supply application |
| 商业机器电器,如:打字机,加法器,电脑显示器和显示器. | Commercial machine appliances such as typewriters, adders, computer monitors and monitors. |
| 晶闸管和双向晶闸管电器,例如:调光器. | Thyristors and bidirectional thyristor appliances such as dimmers. |
| 技术要求 Specifiations | |
| 介质,电介质 Medium, dielectric | 聚丙烯薄膜 polypropylene film |
| 喷金层 Metal spray | 特殊焊料 Special Solder |
| 导线 Lead wire | 鍍錫銅包鋼線 Copper-clad Steel Wire |
| 包封 Envelop | 阻燃防火塑胶壳并以环氧树脂灌封封装Flame retardant and fireproof plastic shell with epoxy resin encapsulation |
| 涂层 Coating | (UL94V-0)塑胶外壳 |
| 电容气候类别 Climatic category | 40/110/21 |
| 静电容量与额定电压Electrostatic capacity and rated voltage | 300/310VAC(50/60Hz) 0.0047uF-10uF |
| 损耗角正切Dissipation Factor | ≤0.001 (20℃ 1KHz,输出水平1.0V);≤0.003 (20℃ 10KHz,输出水平1.0V) |
| 耐电压Voltage Proof | T-T 1333VDC 1min/1700VDC 1s; T-C 2120VAC 50/60Hz 60s |
| 绝缘电阻(20℃ 1min)Insulation Resistance | Ur＞100V Cr≦0.33 μF IR≥30000 MΩ |
| Ur＞100V Cr≥0.33 μF IR≥5000 MΩ.uF | |
