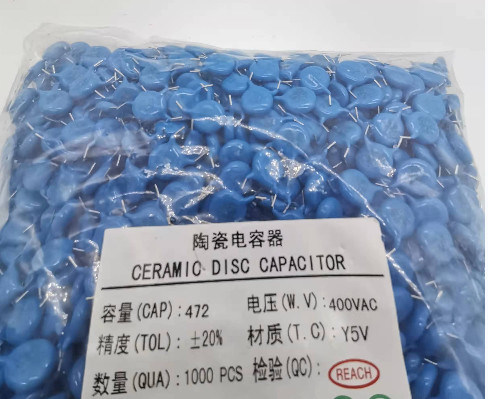

Anti Insulation 472M Y1 Safety Capacitor Flameproof Corrosion Resistant

Large Image : Anti Insulation 472M Y1 Safety Capacitor Flameproof Corrosion Resistant

Product Details:

Place of Origin:	China
Certification:	UL VDE CQC KTL
Model Number:	Y5V-Y1-472M/400V

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Packaging Details:	1000 pcs
Delivery Time:	1-2work days

Contact Now

Anti Insulation 472M Y1 Safety Capacitor Flameproof Corrosion Resistant

Description

Material:	Ac Voltage Safety Ceramic	Capacitance: 10000pf,:	4700pf,
Rated Voltage:	400VAC	Operating Temperature:	-25 ~125℃
Brand:	Y5V-Y1-472M/400V	Capacitance Tolerance:	± 20%
Lead Spacing (mm):	10	Texture:	Y5V
Highlight:	Anti Insulation Y1 Safety Capacitor , 472M Y1 Safety Capacitor , Flameproof x1 x2 y1 y2 capacitors

Safety Ceramic Disc Capacitor 472M400VAC Y1 Safety Capacitor

Product parameters

Specification Reference Standard	IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
Approved Monogram	VDE / ENEC / IEC / UL / CSA / KC / CQC
Subclass ; Rated Voltage(UR)	X1 / Y1/Y2 ; 400VAC / 250VAC
Capacitance Range	10pF to 10000pF
Voltage Proof	4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
Capacitance Tolerance	Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
Dissipation Factor (tgδ)	Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
Insulation Resistance(IR)	IR≥10000MΩ,1min,100VDC
Operating Temperature	-40℃ to +85℃ ; -40℃ to +125℃
Temperature Characteristic	Y5P,Y5U,Y5V
Flame Retardant Epoxy	UL94-V0
